01
More Efficient
High-efficiency air-end with German-design rotors, IE4-class PMSM motor and low-vibration architecture — built for long-life, continuous duty.
GENEXIS★ Best Seller

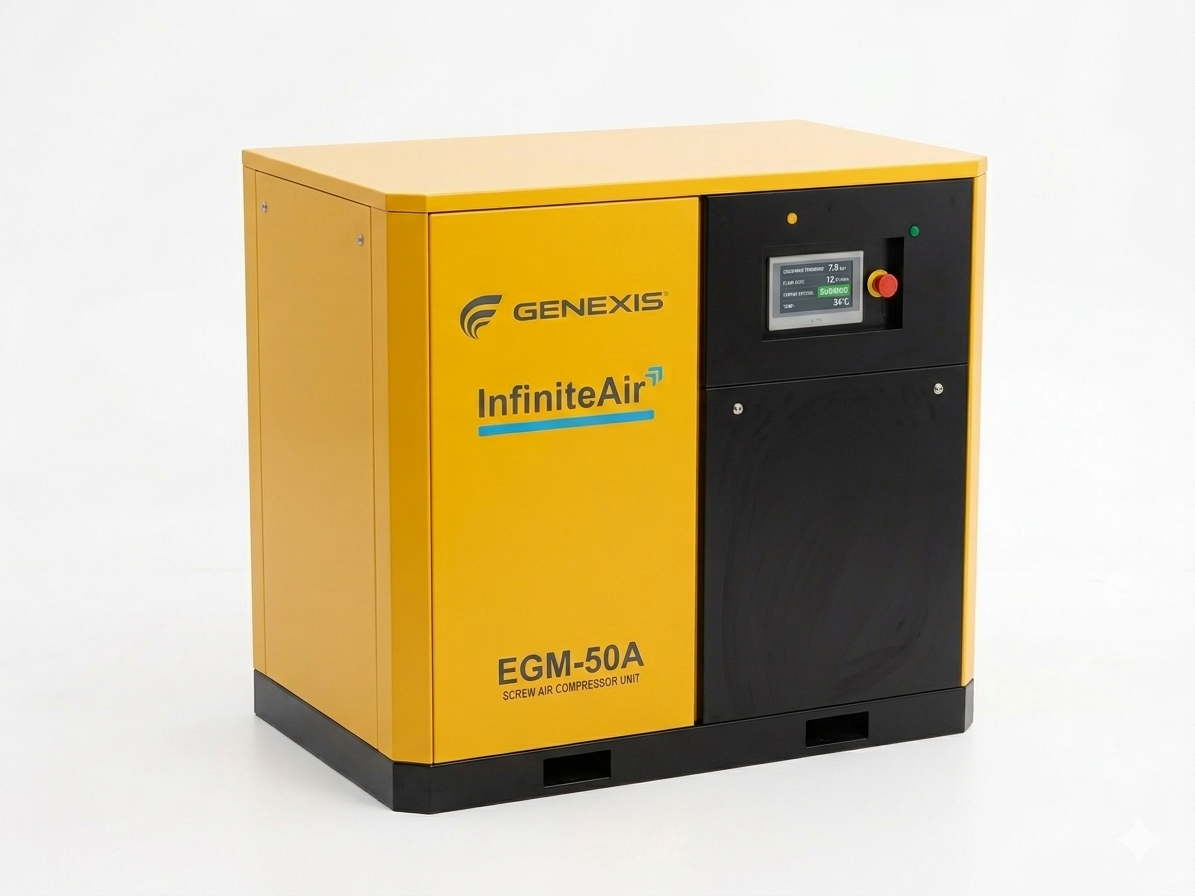

Genexis VSD Magnetic Motor Inverter Screw Air Compressor
EGM Series · PMSM Inverter
Germany-engineered permanent-magnet variable-speed screw compressor that matches air output to real factory demand — delivering up to 35% energy savings versus a fixed-speed unit, with payback in roughly 1 year.
Power Range
7.5 – 250 kW
Working Pressure
0.8 / 1.0 / 1.2 MPa
Air Delivery
1.1 – 42.2 m³/min
Motor
PMSM Inverter · IP55
Sole / authorized distributor in Malaysia · Genuine parts · Full manufacturer warranty
Proudly Designed for Malaysia
Built and configured for reliable continuous performance in Malaysia's hot, humid tropical climate — designed to keep factories running without compromise.
PMSM IPM Motor VSD Inverter IE4 Efficiency Full Touch Screen ±0.01 MPa Control MyHijau Certified
The Big Idea
Pay only for the air you actually use
Factory air demand fluctuates minute by minute. A fixed-speed compressor runs flat-out and dumps excess air — burning electricity for nothing. The EGM VSD reads real-time demand and adjusts motor speed instantly, holding pressure within ±0.01 MPa while cutting the electricity bill.
Worked example: a 75 kW fixed-speed unit running 8,000 h/year at RM 0.50/kWh costs ≈ RM 300,000. The EGM-100A (75 kW) saves ≈ RM 105,000 every year. Typical ROI: about 1 year.
Save up to
~35%
Energy savings vs ordinary fixed-speed screw compressor
Fixed-speed compressor100% electricity
Genexis EGM VSD~65%
Indicative figures based on typical Malaysian factory duty cycle. Actual savings depend on air-demand profile.
Why Genexis EGM
Four Reasons It's Our Best Seller
02
More Comfortable
Variable-frequency operation means lower running noise, no harsh load/unload cycling, and stable pressure delivery to the whole factory.
03
More Stable
Constant-pressure PID control holds discharge within ±0.01 MPa — protecting downstream tools, dryers and pneumatics from pressure swings.
04
More Convenient
Full-colour touch screen with one-touch pressure setting, energy mode, fault diagnostics, timed start/stop and remote operation built in.
Premium Components
Engineered With The World's Best Parts
Permanent-Magnet IPM Motor
Stays above 95% efficiency across the full speed range; 20% more efficient than an asynchronous motor at low speed.
German Schaeffler & Swedish SKF Bearings
Premium bearings on the air-end and motor for long life and ultra-low vibration in 24/7 industrial service.
High-Efficiency Air End
German-design twin-screw profile delivers more m³/min per kW with low rotational noise.
IP55 Motor Protection
Sealed against dust and washdown — built to handle Malaysia's hot, humid factory environments.
Vector + PID Control
Genexis's own in-line vector control gives fast load response while keeping pressure rock-steady.
Full Touch-Screen HMI
One-touch pressure changes, fault history, energy-saving mode and timer/alternate-run scheduling built in.
Technical Specifications
Full model line-up
15 models from 7.5 kW to 250 kW. Available at 0.8, 1.0 and 1.2 MPa working pressure (model dependent).
| Model | Motor Power (kW) | Pressure (MPa) | Air Delivery (m³/min) | Outlet | L × W × H (mm) | Weight (kg) |
|---|---|---|---|---|---|---|
| EGM-10A | 7.5 | 0.8 / 1.0 | 1.1 / 0.9 | G1/2" | 800 × 650 × 840 | 182 |
| EGM-20A | 15 | 0.8 / 1.0 | 2.3 / 2.0 | G3/4" | 940 × 720 × 1020 | 277 |
| EGM-30A | 22 | 0.8 / 1.0 | 3.8 / 3.6 | G1" | 1200 × 950 × 1135 | 410 |
| EGM-40A | 30 | 0.8 / 1.0 | 5.2 / 4.8 | G1" | 1200 × 950 × 1135 | 460 |
| EGM-50A | 37 | 0.8 / 1.0 | 6.5 / 5.7 | G1 1/2" | 1420 × 900 × 1390 | 610 |
| EGM-60A | 45 | 0.8 / 1.0 / 1.2 | 7.5 / 6.8 / 5.6 | G1 1/2" | 1560 × 1000 × 1365 | 830 |
| EGM-75A | 55 | 0.8 / 1.0 / 1.2 | 10.5 / 8.9 / 7.6 | G2" | 1800 × 1070 × 1490 | 1120 |
| EGM-100A | 75 | 0.8 / 1.0 / 1.2 | 13.5 / 11.5 / 10.0 | G2" | 1800 × 1070 × 1490 | 1290 |
| EGM-120A | 90 | 0.8 / 1.0 / 1.2 | 16.5 / 13.7 / 12.3 | G2" | 2100 × 1400 × 1780 | 1900 |
| EGM-150A | 110 | 0.8 / 1.0 / 1.2 | 20.5 / 17.9 / 15.3 | G2 1/2" | 2500 × 1450 × 1800 | 2300 |
| EGM-175A | 132 | 0.8 / 1.0 / 1.2 | 24.0 / 21.3 / 18.3 | G2 1/2" | 2700 × 1550 × 1800 | 3500 |
| EGM-220A | 160 | 0.8 / 1.0 / 1.2 | 28.5 / 25.5 / 21.5 | G2 1/2" | 2700 × 1550 × 1800 | 3800 |
| EGM-250A | 185 | 0.8 / 1.0 / 1.2 | 32.0 / 27.5 / 25.1 | DN80 | 2800 × 1800 × 1950 | 3450 |
| EGM-300A | 220 | 0.8 / 1.0 / 1.2 | 37.5 / 31.5 / 28.2 | DN80 | 2800 × 1800 × 1950 | 3850 |
| EGM-350A | 250 | 0.8 / 1.0 / 1.2 | 42.2 / 38.5 / 34.9 | DN80 | 3250 × 2100 × 2300 | 4250 |
Pressure in MPa · Air delivery shown per pressure level · Specifications may be updated by the manufacturer without prior notice.
Trusted Across Malaysian Industry
From semiconductor cleanrooms to F&B production lines, the Genexis EGM keeps Penang's factories running.
Electronics & Semiconductor
Automotive
Food & Beverage
Pharmaceutical
Textile & Garment
General Manufacturing
Ready to cut your air-compressor electricity bill?
Free on-site air-demand survey in Penang & Northern Malaysia. Honest VSD sizing, transparent ROI report.
